Tests Copying, Pasting, API Cliipboard issues. and Rough notes on Advanced API stuff

[DocAElstein]

https://www.excelfox.com/forum/showt...age4#post17896
https://www.excelfox.com/forum/showt...age4#post17896
From here on are intermediate experiments and considerations on VB strings in the win32 api
This post just has temporary notes for me so will be of no interest to anyone, or might be later. It may be a first attempt by me at some conclusions, with references that may be reproduced later better or help me to navigate better in my later conclusions

---

From here on are intermediate experiments and considerations/ conclusion attempts on VB strings in the win32 api

Consideration of the two typical forms of most api functions ( the WUnicorn and the AASI )

Consideration of the two typical forms of most api functions involving strings ( the MyAPIFunctionWUnicorn and the MyAPIFunctionAASI ) helps also to understand what’s going on with strings in the win32 api
For the time being, the difference between the the WUnicorn and the AASI can be considered as related some how the "WUnicorn AASI discussions in posts such as https://www.excelfox.com/forum/showt...ll=1#post24946 and previous



https://eileenslounge.com/viewtopic....324730#p324730
Api knows nothing about VB(A) strings…. If we restrict ourselves to the time from win32 api, then to all intents and purposes the

[DocAElstein]

This is post https://www.excelfox.com/forum/showt...age3#post17887
Some further notes related to this post
https://eileenslounge.com/viewtopic.php?f=30&t=41784
https://eileenslounge.com/viewtopic....324039#p324039

---

Some StrTrim experiments and musings

Considering here some Jolly Trimmy, Jimmy Riddling, (Piddling about) with the win32 API Function StrTrim: - pseudo like it should do
StrTrim("abad", "a") - > "bad"

Let's see if we can learn any API stuff from experimenting with it. We will try it out in 4 forms:
_ "straight" AASI, - the StrTrimA, string parameters as string type
_ "Half way" (HWH) AASI. - the StrTrimA, string parameters as long (pointers)
_ "Full" WUnicorn - the StrTrimW, string parameters as long (pointers)
_ "Half way" (HWHWU) WUnicorn - - the StrTrimW, string parameters as string Type

For each of the 4 sets of experiments , we
_ first apply an idea suggested here as an win32 API function doping nothing, - the idea being to go through a lot of characters trimming nothing off, pseudo like
StrTrim(Chucky(x), "") - > should be Chucky(x) , where Chucky(x) could be looped for x 0 – 255 or 0-65535 in the VBA functions Chr(x) or ChrW(x) , or alternatively in place of Chucky(x) we could just go through some list of characters, for example those in a code page list.
Just to make that clear, let's say the character of interest is A, either taken from a list, or got from Chr(65) or ChrW(65)
StrTrim(Chr(65), "") - > should be Chr(65)
StrTrim("A", "") - > should be "A"
We then compare the character going in with the character coming out.

Our returned value (The ByVal/ByRef issue)
Important to note, the pseudo coding above is pseudo coding, just to give the general idea.
If you are familiar with VBA functions generally then you may typically experience the function returning something such as the result you want. A typical characteristic of win32 API functions in VBA is that the return from the function itself is most often something like a Boolean ( 0 or 1 ) to give some general indication of something, such as if the function "worked" or did something.( In this case a 1 would be returned if something was trimmed off, and a 0 otherwise).
Any result we want comes typically from something similar to the classic Use of ByRef instead of function return value of a VBA function . (The fact that we use ByVal rather than the ByRef that we might initially have guessed is the major issue that sparked of these entire series of VBA win32 API musings. For here and now we just accept that ByVal is necessary)
In short – the trimmed, ( or in this first experiment the untrimmed ) result is returned in the same variable we use to supply the input string, in our codings Ay in
StrTrim(Ay, "")

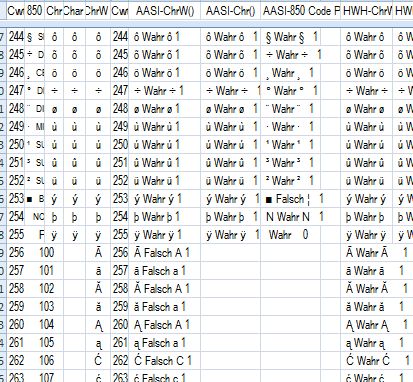

Spreadsheet for results
We will exclusively use the spreadsheet for results, since some initial investigations suggests that the spreadsheet reproduces a very large number of different characters, so we can most likely assume that no extra complications are raised as a result of pasting out into a spreadsheet. Similarly we will assume that VBA variables hold accurately all characters so that a simple comparison of a variables holding the inputted and outputted character will gives us an accurate indication of if the character has changed. We can then list results thus:

A True A 1

a True a 1
ā False a 1
https://i.postimg.cc/Bt9cqfc6/Str-Tr...ng-results.jpg
https://i.postimg.cc/0QsYSvdF/A-True-A.jpg
(, where I am also including a number for the length of the output, 1 in this case. **The significance of that will be apparent later )

_ secondly we do the same thing but with StrTrim arranged to do something, pseudo like
StrTrim(Chucky(x) & "a" & Chucky(x) & "a" , "") - > should be "a" & Chucky(x) & "a"
, to make that a bit more clear, let's say Chucky(x) is Chr(98) . ( or ChrW(98) ) , which is b , then
StrTrim(Chr(98) & "a" & Chr(98) & "a" , Chr(98)) - > should be "a" & Chr(98) & "a"
StrTrim(Chr(98) & "a" & Chr(98) & "a" , Chr(98)) - > should be "a" & "b" & "a"
StrTrim(Chr(98) & "a" & Chr(98) & "a" , Chr(98)) - > should be "aba"
StrTrim("baba" , "b") - > should be "aba"
Correspondingly if the function does as it is intended, then our results will be

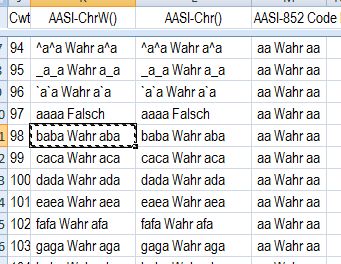

baba Wahr aba
https://i.postimg.cc/Vk1Vz9nj/baba-True-aba.jpg

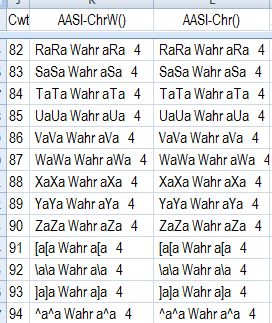

The True result will be based on the last 3 characters on the left being the same as the (first**) 3 characters on the right. I also include in some of these results again the length of the character set on the right. You can see for the first time in this next screen shot something screwy, as 4s are showing where we should see 3s. More to that again later
https://i.postimg.cc/Wzwm71wx/Len-4-...d-of-Len-3.jpg

A large file with a lot of results is here, I will add it for completeness and future reference.
AASIWUnicorn.xlsm
It is very crowded with coding and results, so below I will just
_ give sample coding in the next post
and
_ talk though a small selection and make some general observations in the over next post .

[DocAElstein]

Typical codings discussed in the previous post
Here are just two sample codings from the workbook.

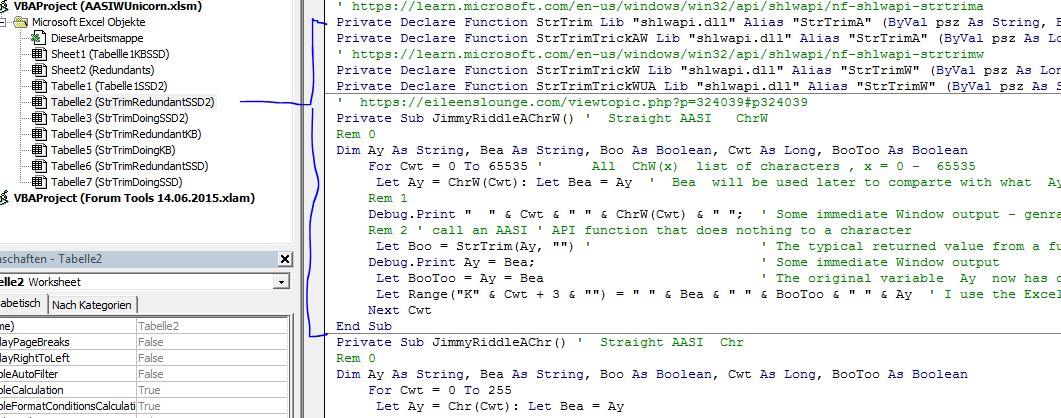

The first coding uses the straight AASI version of the StrTrimA( , ) , and tries trimming nothing from as single character, or rather it loops through the entire ChW(x) list of characters , x = 0 - 65535 , attempting to trim nothing from it. The results it presents in column K https://i.postimg.cc/m2GW2cCN/Str-Tr...n-column-K.jpg
Coding is in file the worksheets object code module, StrTrimRedundantSSD2

Option Explicit
' https://learn.microsoft.com/en-us/windows/win32/api/shlwapi/nf-shlwapi-strtrima
Private Declare Function StrTrim Lib "shlwapi.dll" Alias "StrTrimA" (ByVal psz As String, ByVal pszTrimChars As String) As Long '  '  Straight AASI          -   we'll be passing vb string to api
Private Declare Function StrTrimTrickAW Lib "shlwapi.dll" Alias "StrTrimA" (ByVal psz As Long, ByVal pszTrimChars As Long) As Long '  Trick _ Half way house -  we'll be passing the StrPtr to API
' https://learn.microsoft.com/en-us/windows/win32/api/shlwapi/nf-shlwapi-strtrimw
Private Declare Function StrTrimTrickW Lib "shlwapi.dll" Alias "StrTrimW" (ByVal psz As Long, ByVal pszTrimChars As Long) As Long '   Full Unicorn's Bollox  -  we'll be passing the StrPtr to API
Private Declare Function StrTrimTrickWUA Lib "shlwapi.dll" Alias "StrTrimW" (ByVal psz As String, ByVal pszTrimChars As String) As Long '   we'll be passing vb string to api
'  https://eileenslounge.com/viewtopic.php?p=324039#p324039
Private Sub JimmyRiddleAChrW() '  Straight AASI   ChrW
Rem 0
Dim Ay As String, Bea As String, Boo As Boolean, Cwt As Long, BooToo As Boolean
    For Cwt = 0 To 65535 '      All  ChW(x)  list of characters , x = 0 -  65535
     Let Ay = ChrW(Cwt): Let Bea = Ay  '  Bea  will be used later to comparte with what  Ay  becomes after used
    Rem 1
    Debug.Print "  " & Cwt & " " & ChrW(Cwt) & " ";  ' Some immediate Window output - genrally less useful in such experiments as the VB Editor and Immediate window do not do  WUnicode  so that adds another confusion. I ust the Excel Spreadsheet instead for viewable output --###
    Rem 2 ' call an AASI ' API function that does nothing to a character
     Let Boo = StrTrim(Ay, "") '                     ' The typical returned value from a function does not give a typical direct result. In this case it tells us if anything was trimmed.  We do not need this result
    Debug.Print Ay = Bea;                            ' Some immediate Window output
     Let BooToo = Ay = Bea                           ' The original variable  Ay  now has possibly overwritten in it  a new value, or not. Investigating this is  one of the purposes of this coding
     Let Range("K" & Cwt + 3 & "") = " " & Bea & " " & BooToo & " " & Ay  ' I use the Excel Spreadsheet for output as it appears to have no issues with reproducing accurately many thousands of different characters. -------------------------------------------------------------###
    Next Cwt
End Sub

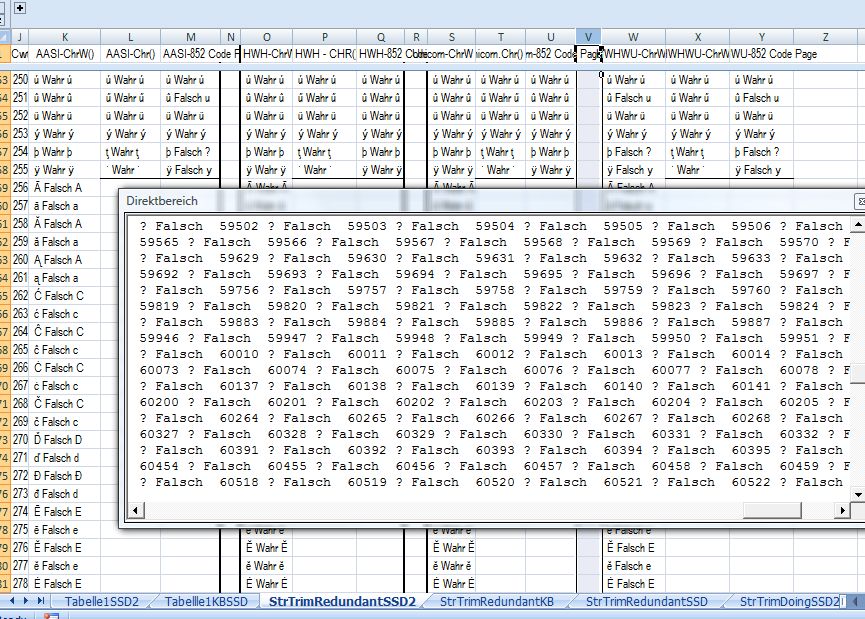

(The Immediate window results are of limited use in such experiments as the VB Editor and Immediate window do not do WUnicode so that adds another confusion. In further experiments we will mostly ignore the Immediate window or any other typical VB Editor debugging tools )
https://i.postimg.cc/m2GW2cCN/Str-Tr...n-column-K.jpg




The second coding example is the corresponding straight AASI approach with the attempt to get the StrTrim to actually do a trim
I give it 4 characters, for example
baba or caca
, trimming correspondingly for those two examples with
b or c
, using arbitrarily the character a as a filler. So in those example the results would be expected of
aba or aca

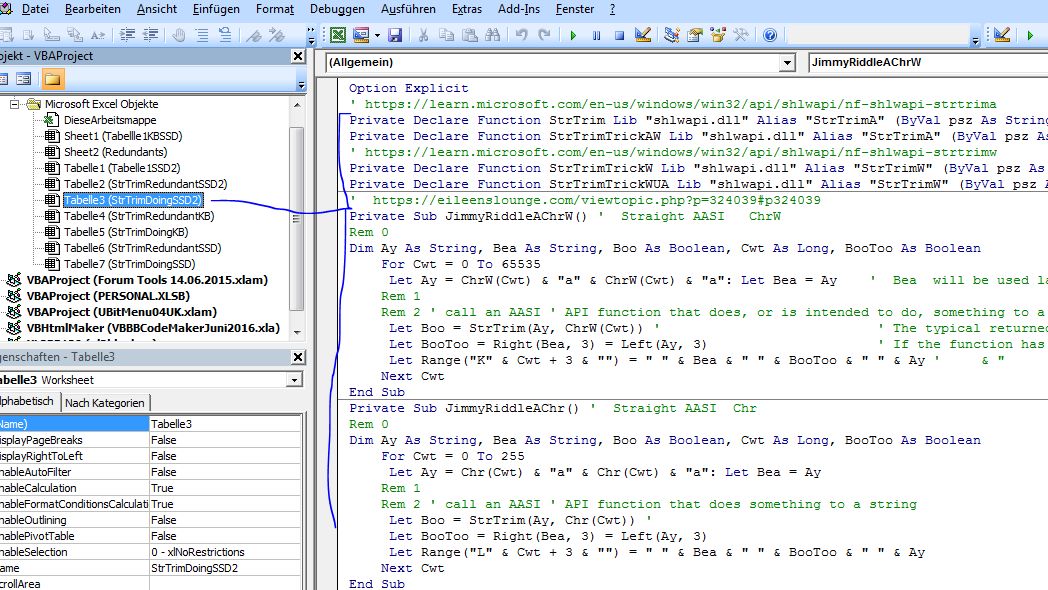

Coding is in worksheets object code module StrTrimDoingSSD2

Option Explicit
' https://learn.microsoft.com/en-us/windows/win32/api/shlwapi/nf-shlwapi-strtrima
Private Declare Function StrTrim Lib "shlwapi.dll" Alias "StrTrimA" (ByVal psz As String, ByVal pszTrimChars As String) As Long '  '  Straight AASI          -   we'll be passing vb string to api
Private Declare Function StrTrim Lib "shlwapi.dll" Alias "StrTrimA" (ByVal psz As String, ByVal pszTrimChars As String) As Long '  '  Straight AASI          -   we'll be passing vb string to api
Private Declare Function StrTrimTrickAW Lib "shlwapi.dll" Alias "StrTrimA" (ByVal psz As Long, ByVal pszTrimChars As Long) As Long '  Trick _ Half way house -  we'll be passing the StrPtr to API
' https://learn.microsoft.com/en-us/windows/win32/api/shlwapi/nf-shlwapi-strtrimw
Private Declare Function StrTrimTrickW Lib "shlwapi.dll" Alias "StrTrimW" (ByVal psz As Long, ByVal pszTrimChars As Long) As Long '   Full Unicorn's Bollox  -  we'll be passing the StrPtr to API
Private Declare Function StrTrimTrickWUA Lib "shlwapi.dll" Alias "StrTrimW" (ByVal psz As String, ByVal pszTrimChars As String) As Long '   we'll be passing vb string to api
 '  https://eileenslounge.com/viewtopic.php?p=324039#p324039
Private Sub JimmyRiddleAChrW() '  Straight AASI   ChrW
Rem 0
Dim Ay As String, Bea As String, Boo As Boolean, Cwt As Long, BooToo As Boolean
    For Cwt = 0 To 65535
     Let Ay = ChrW(Cwt) & "a" & ChrW(Cwt) & "a": Let Bea = Ay    '  Bea  will be used later to comparte with what  Ay  becomes after used.  Ay  will itself possibly change on  "it's journey through"  the  StrTrim  function
    Rem 1
    Rem 2 ' call an AASI ' API function that does, or is intended to do, something to a string
     Let Boo = StrTrim(Ay, ChrW(Cwt)) '                           ' The typical returned value from a function does not give a typical direct result. In this case it tells us if anything was trimmed.  We do not need this result, although we will check it sometimes to see if it matches the apparant results
     Let BooToo = Right(Bea, 3) = Left(Ay, 3)                     ' If the function has done as intended, which is to trim of the  ChrW(Cwt)   then we expect the three right most characters on the original 4 character string to look like the returned results, which are overwritten into the original variable,  Ay  , (but there is a subtlty as we may expect an invisible  Chr(0)  on the end of the output, so we only compare to the first 3
     Let Range("K" & Cwt + 3 & "") = " " & Bea & " " & BooToo & " " & Ay '     & "       " & Len(Ay) & "   " & Boo ' ' I use the Excel Spreadsheet for output as it appears to have no issues with reproducing accurately many thousands of different characters.
    Next Cwt
End Sub
Private Sub JimmyRiddleAChr() '  Straight AASI  Chr

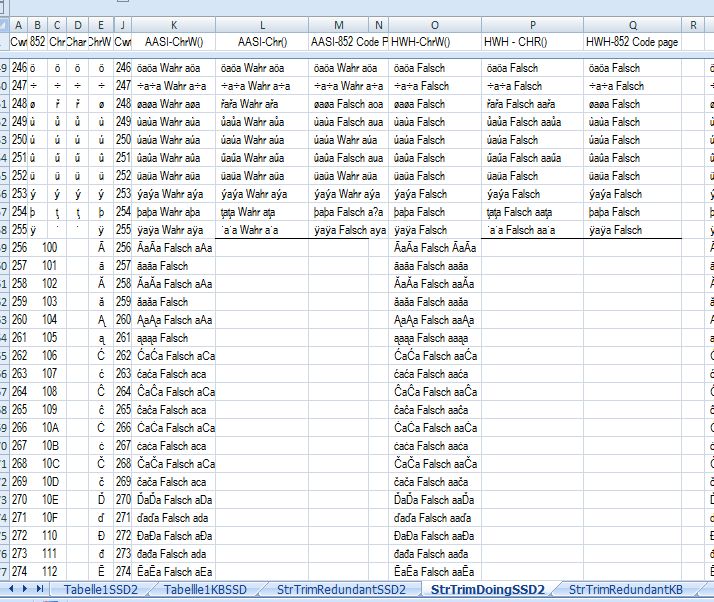

https://i.postimg.cc/SKJmDYf9/First-...-something.jpg

[DocAElstein]

Some initial observations and conclusions
Some of these conclusions and observations may change as time goes on and I try many different computers, but provisionally, as notes to possibly come back to and update

The character lists used in my experiments
The VBA ChrW( ) function seems to give a consistent list across different computers
The VBA Chr( ) and Excel CHAR( ) give identical results on any computer. (So from now on observations for the Chr( ) also apply to the CHAR( ) )
The Chr( ) as expected is always the same characters across the 0-127 (ASCII) range. Above 127 the characters got from Chr( ) can vary on different computers. They do not seem to match the characters from the published tables based on the code page I obtain from chcp in PowerShell . They wouldn’t. … interrogating the code page from a (DOS) command such as chcp gives you the MS-DOS code page, not the windows code page .... You need to look at the GetACP API call The match with the characters from the relevant windows code page and Chr(x) is then the same ( https://www.excelfox.com/forum/showt...ll=1#post24947 )

Observations for the StrTrim doing nothing to a character, (or maybe not actually doing anything to a character – subtle different…. Maybe….)
Some conventions for these observation musings:
"OK"
If something is "OK", it means the character fed in via the variable, Ay , seems to be the same as that coming back in that variable. So this means results like
Ê Wahr Ê ( Wahr on my mostly German computers is True in English )
"Wonky"
"Wonky" means I may not always get the OK results, but that at this stage I do not have enough results to be more precise.
"Don't work"
Something like "don't work" / not work, or similar means I mostly get a mismatch with what comes out compared to what goes in, but once again, at this stage I can't be more precise


It may be easier to "work backwards"…

The full WUnicorn
The full WUnicorn appears to return the character it gets across the full 0 - 65535 decimal (Hex FFFF ) code point range

The half way house WUnicorn
The half way house WUnicorn is OK up to 127. From 128 to 255 it can be a bit wonky. Above 255 you may only occasionally find the odd Wahr ( True ) match to in and out

The half way house ASII
This appears to give the same "perfect" results as for the full WUnicorn for the case of StrTrim doing nothing to a character, (or maybe not actually doing anything to a character)

The straight ASII
Based on the first occurrence I saw of this, with the StrTrimA I was expecting this to not work above 255. At first glance this appeared to be the case. However as a result of looking more carefully, and also trying out a lot of computers I was able to see some anomalies , above 255 and also below 256

_ For the Chr( ) characters the straight ASSI works (True result) across the 0-255 range

_ For the ChrW( ) the story is interesting. These anomalies are such that not only do we see it working sometimes above 255 but also occasionally not working below 256
Over the ASCII decimal code point range, 0 to 127 it mostly works, (True result)
Going up to 160 it is mostly False
From 160 to 255 they can all be True on a computer, or I have seen it approximately 50 50
Above 255 to approximately 400 you can get just a few correct on one computer or about a third on another

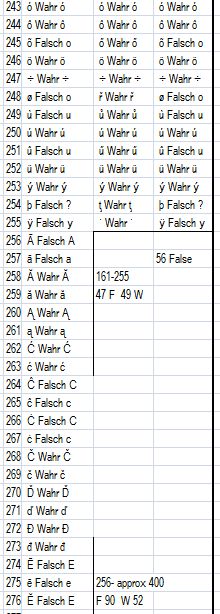

Here is an example for a computer with windows code page 1250
https://i.postimg.cc/0jFgS1ZG/Straig...D2-CP-1252.jpg
